ASTA 55
圆形地埋灯
ASTA 55
圆形地埋灯
ASTA 55
圆形地埋灯
ASTA 55
圆形地埋灯
ASTA 55
圆形地埋灯

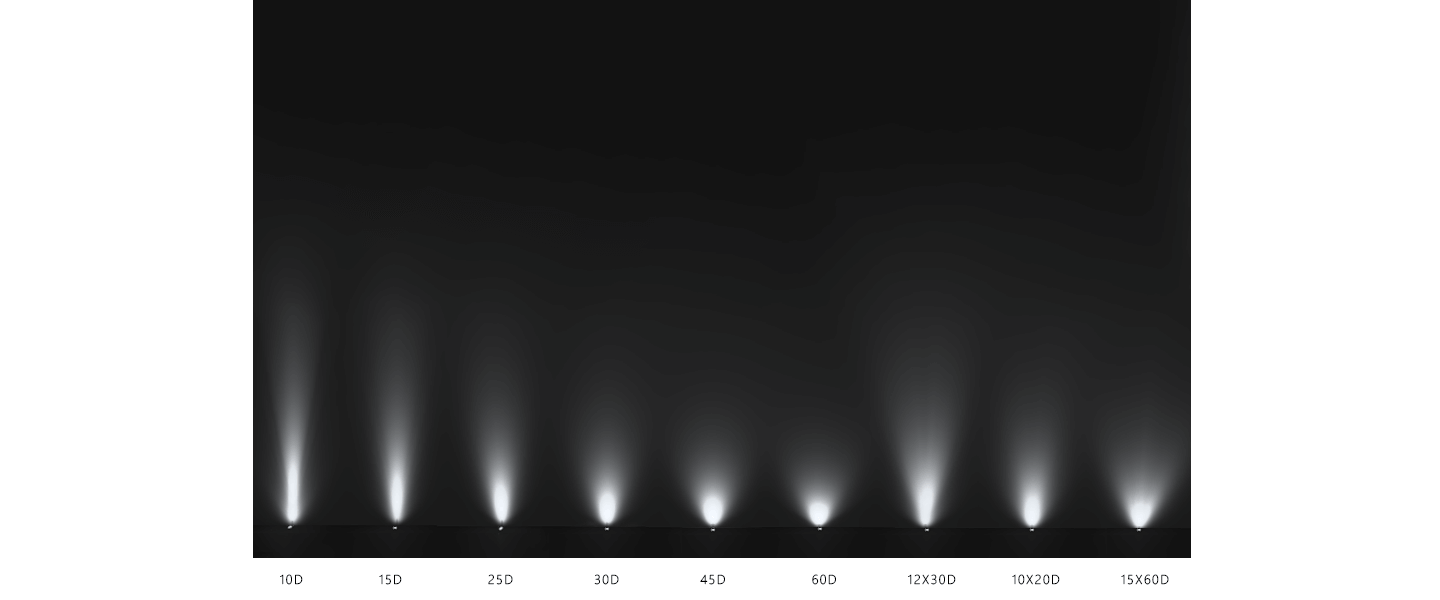

光效图
- 产品规格:
- 灯具类型:圆形地埋灯
- 开孔尺寸:φ 55mm
- 预埋件尺寸:φ 110*62 mm ø 110*120 mm
- 光束角:10D 15D 25D 30D 45D 60D 12X30D 20X30D 15X60D
- 功率:2W
- 重量:0.39kg 0.47kg 0.33kg
- 散热器材质: 铝
- 表面工艺:烤漆
- 色温:2700K 3000K 4000K

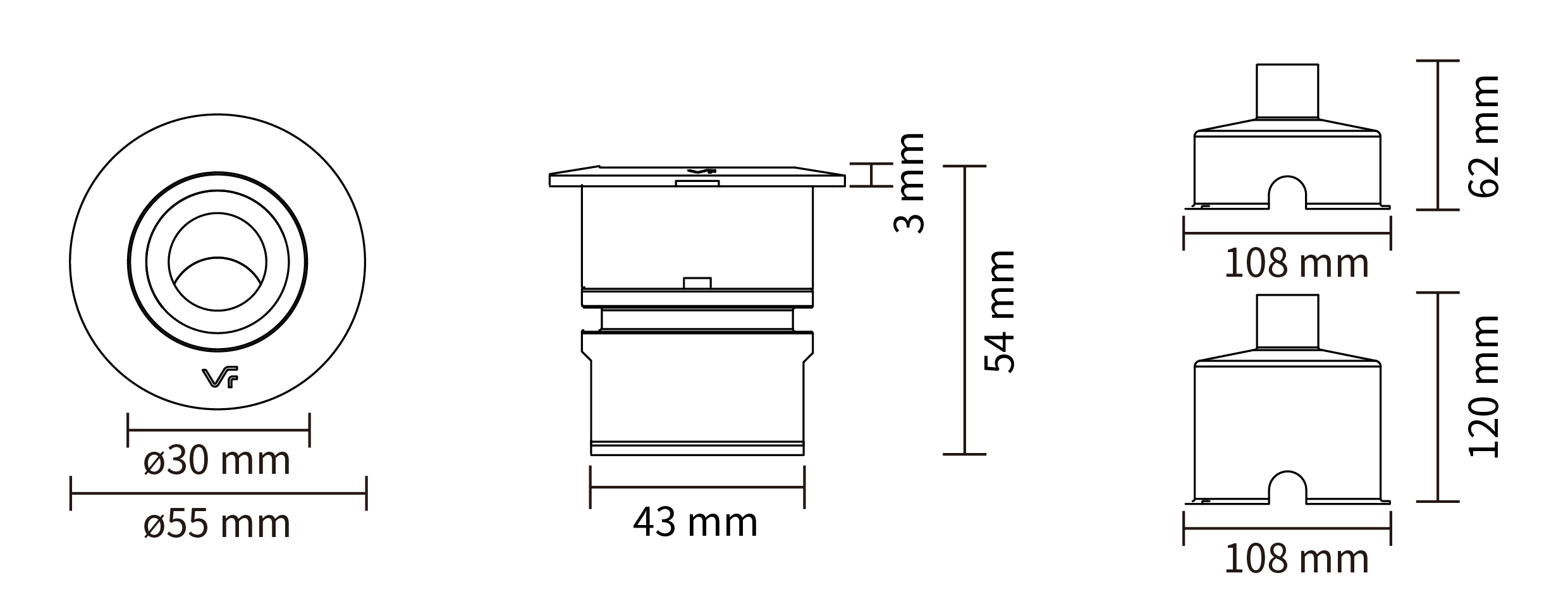

- 线条图:
- 产品特征:
- 可选配件:
- 反射器颜色:
- 外框颜色:
型号选择:功率- 功率
- 0.1W
- 2W
光束角- 光束角
- 面发光
- 10°
- 15X25°
- 15X60°
- 15°
- 20X30°
- 25°
- 30°
- 50°
- 60°
显示指数- 显示指数
- >80
色温- 色温
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
调光方式- 调光方式
- 1-Non Dim
- 3-0-10V调光
- 4-DALI调光
- 5-DMX512
边框颜色- 边框颜色
- A3-不锈钢本色
反射器颜色- 反射器颜色
- 无
防护等级- 防护等级
- 67-IP67
配件- 配件
- B-海鸥格栅
- C-月牙格栅
功率
- 功率
- 0.1W
- 2W
光束角
- 光束角
- 面发光
- 10°
- 15X25°
- 15X60°
- 15°
- 20X30°
- 25°
- 30°
- 50°
- 60°
显示指数
- 显示指数
- >80
色温
- 色温
- 2700K
- 3000K
- 4000K
Control
- Control
- ON/OFF/DALI/DMX512
调光方式
- 调光方式
- 1-Non Dim
- 3-0-10V调光
- 4-DALI调光
- 5-DMX512
边框颜色
- 边框颜色
- A3-不锈钢本色
反射器颜色
- 反射器颜色
- 无
防护等级
- 防护等级
- 67-IP67
配件
- 配件
- B-海鸥格栅
- C-月牙格栅
型号
整灯光通量
功率
光束角
显示指数
色温
Control
规格书
DWG
IES
安装手册
收藏
- 型号
- BB00202-00000827
- BB00202-00000830
- BB00202-00000840
- BB00202-00010827
- BB00202-00015827
- BB00202-00025827
- BB00202-00030827
- BB00202-00045827
- BB00202-00060827
- BB00202-01230827
- BB00202-02030827
- BB00202-01560827
- BB00202-00010830
- BB00202-00015830
- BB00202-00025830
- BB00202-00030830
- BB00202-00045830
- BB00202-00060830
- BB00202-01230830
- BB00202-02030830
- BB00202-01560830
- BB00202-00010840
- BB00202-00015840
- BB00202-00025840
- BB00202-00030840
- BB00202-00045840
- BB00202-00060840
- BB00202-01230840
- BB00202-02030840
- BB00202-01560840
- 整灯光通量
- 2.55LM
- 2.63LM
- 2,77LM
- 101LM
- 113LM
- 109LM
- 106LM
- 107LM
- 90LM
- 91LM
- 99LM
- 90LM
- 104LM
- 117LM
- 112LM
- 109LM
- 110LM
- 93LM
- 94LM
- 102LM
- 93LM
- 113LM
- 119LM
- 111LM
- 119LM
- 121LM
- 99LM
- 124LM
- 110LM
- 107LM
- 功率
- 0.1W
- 0.1W
- 0.1W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 2W
- 光束角
- 面发光
- 面发光
- 面发光
- 10°
- 15°
- 25°
- 30°
- 50°
- 60°
- 15X25°
- 20X30°
- 15X60°
- 10°
- 15°
- 25°
- 30°
- 50°
- 60°
- 15X25°
- 20X30°
- 15X60°
- 10°
- 15°
- 25°
- 30°
- 50°
- 60°
- 15X25°
- 20X30°
- 15X60°
- 显示指数
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- 色温
- 2700K
- 3000K
- 4000K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- 规格书
- DWG
- IES
- 安装手册
- 收藏
