首页产品室外 ARCUS 80 - 洗墙灯

ARCUS 80

洗墙灯

ARCUS 80

ARCUS 80

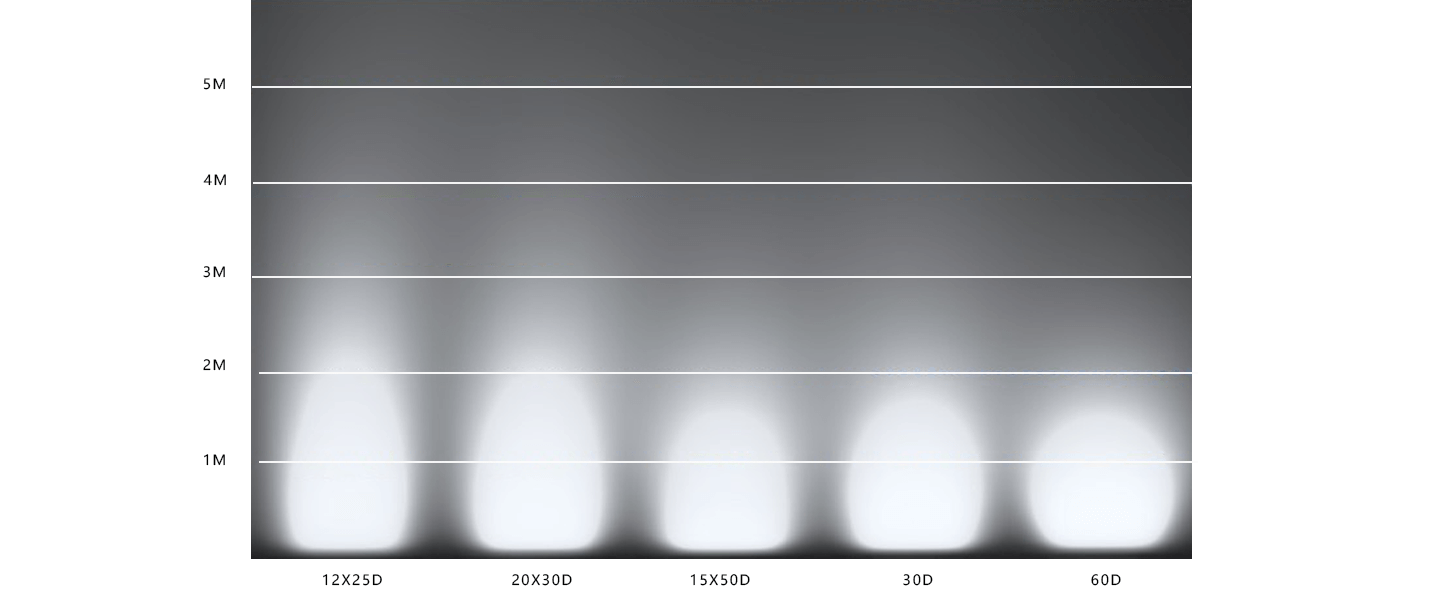

光效图

产品规格:: 灯具类型:洗墙灯; 光束角:12x25D 20x30D 15x55D 30D 60D; 功率:100W 120W; 灯具尺寸:1000*80*80mm; 重量:4.73 kg; 色温:2700K 3000K 4000K; 散热器材质:铝; 表面工艺:喷粉

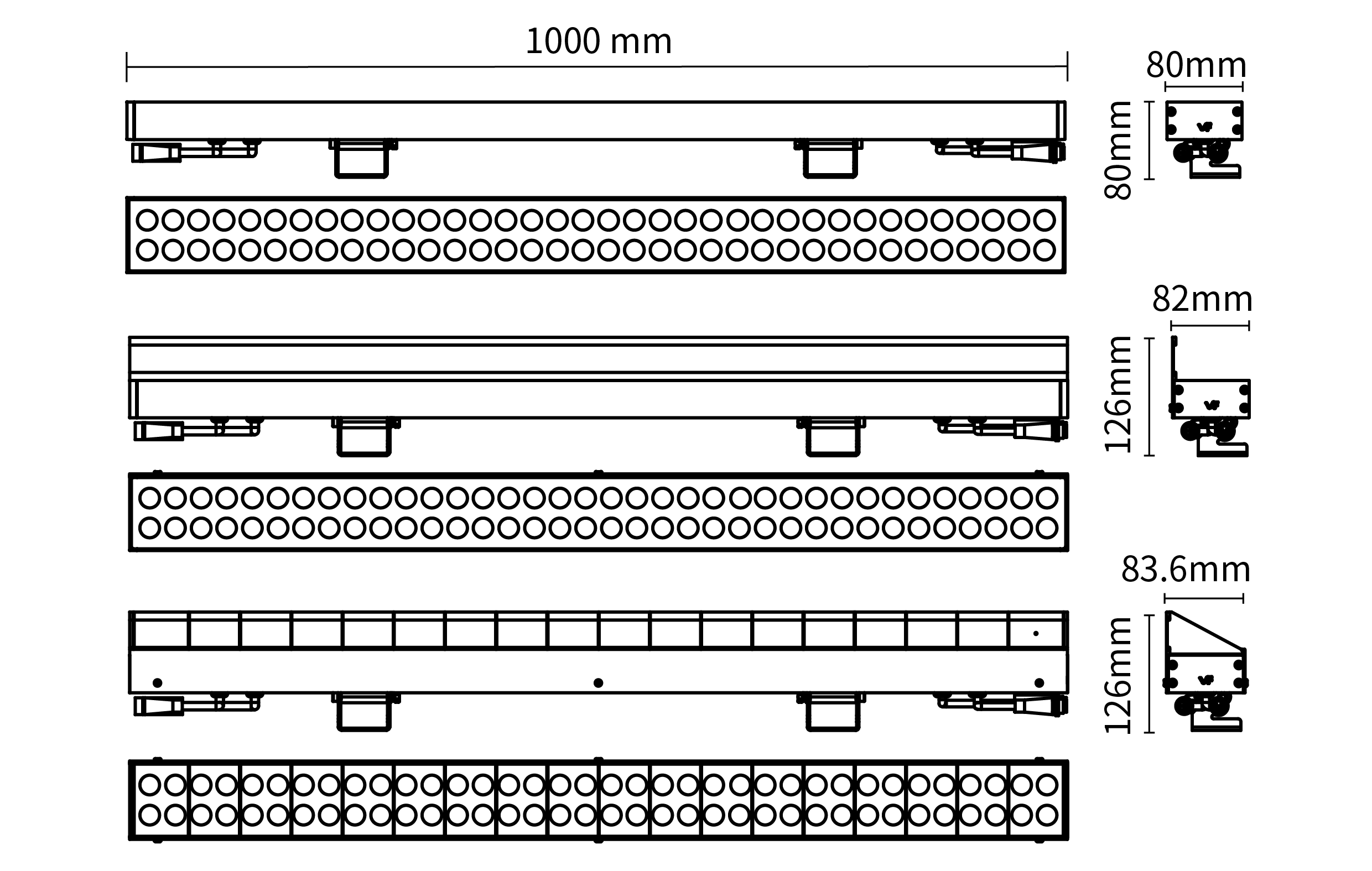

线条图:

产品特征:

可选配件:

反射器颜色:

外框颜色:

型号选择:

功率

功率
100W
120W

光束角

光束角
15X55°
15X25°
20X30°
30°
60°

显示指数

显示指数
>80

色温

色温
2700K
3000K
4000K

Control

Control
ON/OFF/DALI/DMX512

调光方式

调光方式
1-Non Dim
4-DALI调光
5-DMX512

边框颜色

边框颜色
03-灰色

反射器颜色

反射器颜色
无

防护等级

防护等级
66-IP66

配件

配件
E-侧挡板
C-格栅

型号
整灯光通量
功率
光束角
显示指数
色温
Control
规格书
DWG
IES
安装手册
收藏

型号: BL00105-10015258027; BL00105-10015258030; BL00105-10015258040; BL00105-10020308027; BL00105-10020308030; BL00105-10020308040; BL00105-10015558027; BL00105-10015558030; BL00105-10015558040; BL00105-100308027; BL00105-100308030; BL00105-100308040; BL00105-100608027; BL00105-100608030; BL00105-100608040; BL00105-12015258027; BL00105-12015258030; BL00105-12015258040; BL00105-12020308027; BL00105-12020308030; BL00105-12020308040; BL00105-12015558027; BL00105-12015558030; BL00105-12015558040; BL00105-120308027; BL00105-120308030; BL00105-120308040; BL00105-120608027; BL00105-120608030; BL00105-120608040

整灯光通量: 9631LM; 9342LM; 10138LM; 10175LM; 9869LM; 10711LM; 9084LM; 8811LM; 9562LM; 9094LM; 8821LM; 9525LM; 9407LM; 9125LM; 9902LM; 10528LM; 10212LM; 11082LM; 11494LM; 11149LM; 12099LM; 9801LM; 9507LM; 10316LM; 10236LM; 9929LM; 10774LM; 10361LM; 10051LM; 10906LM

功率: 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W

光束角: 15X25°; 15X25°; 15X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°; 15X25°; 15X25°; 15X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°

显示指数: >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80

色温: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512

规格书

DWG

IES

安装手册

收藏
