首页产品室外 ARCUS 65 - 洗墙灯

ARCUS 65

洗墙灯

ARCUS 65

ARCUS 65

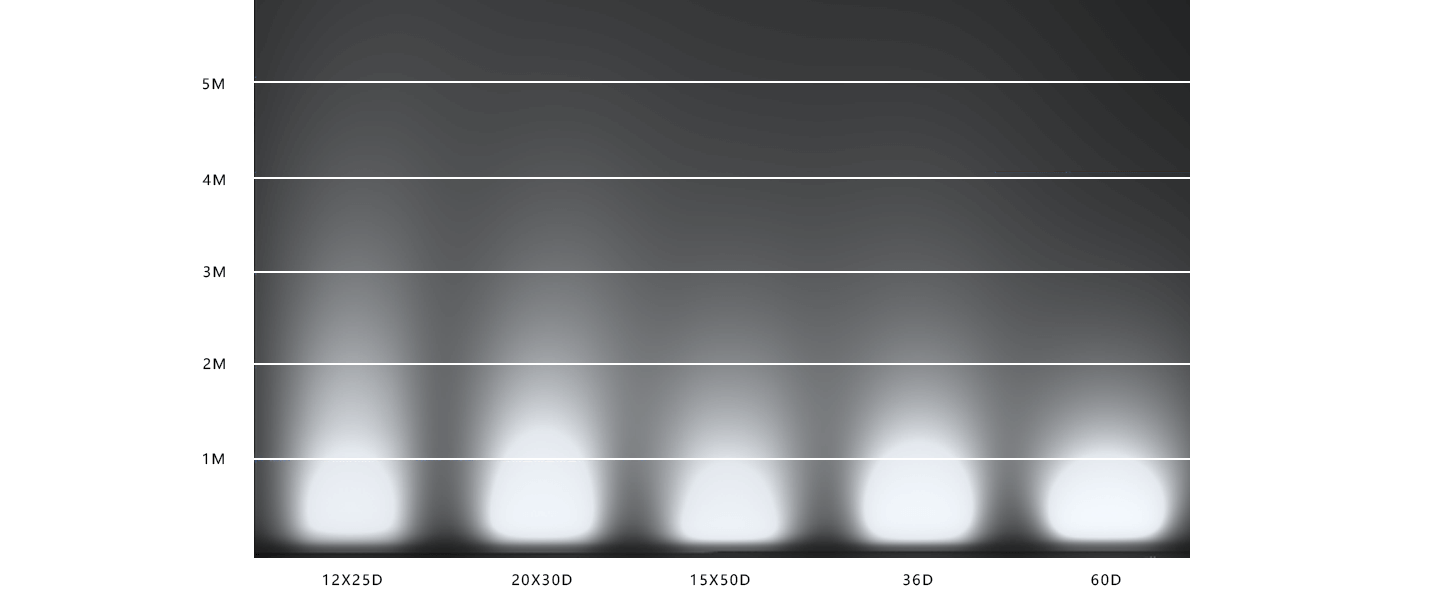

光效图

产品规格:: 灯具类型:洗墙灯; 光束角:12x25D 20x30D 15x55D 30D 60D; 功率:64W 72W 80W; 灯具尺寸:1000*65*80mm; 重量:4.1kg; 色温:2700K 3000K 4000K; 散热器材质:铝; 表面工艺:喷粉

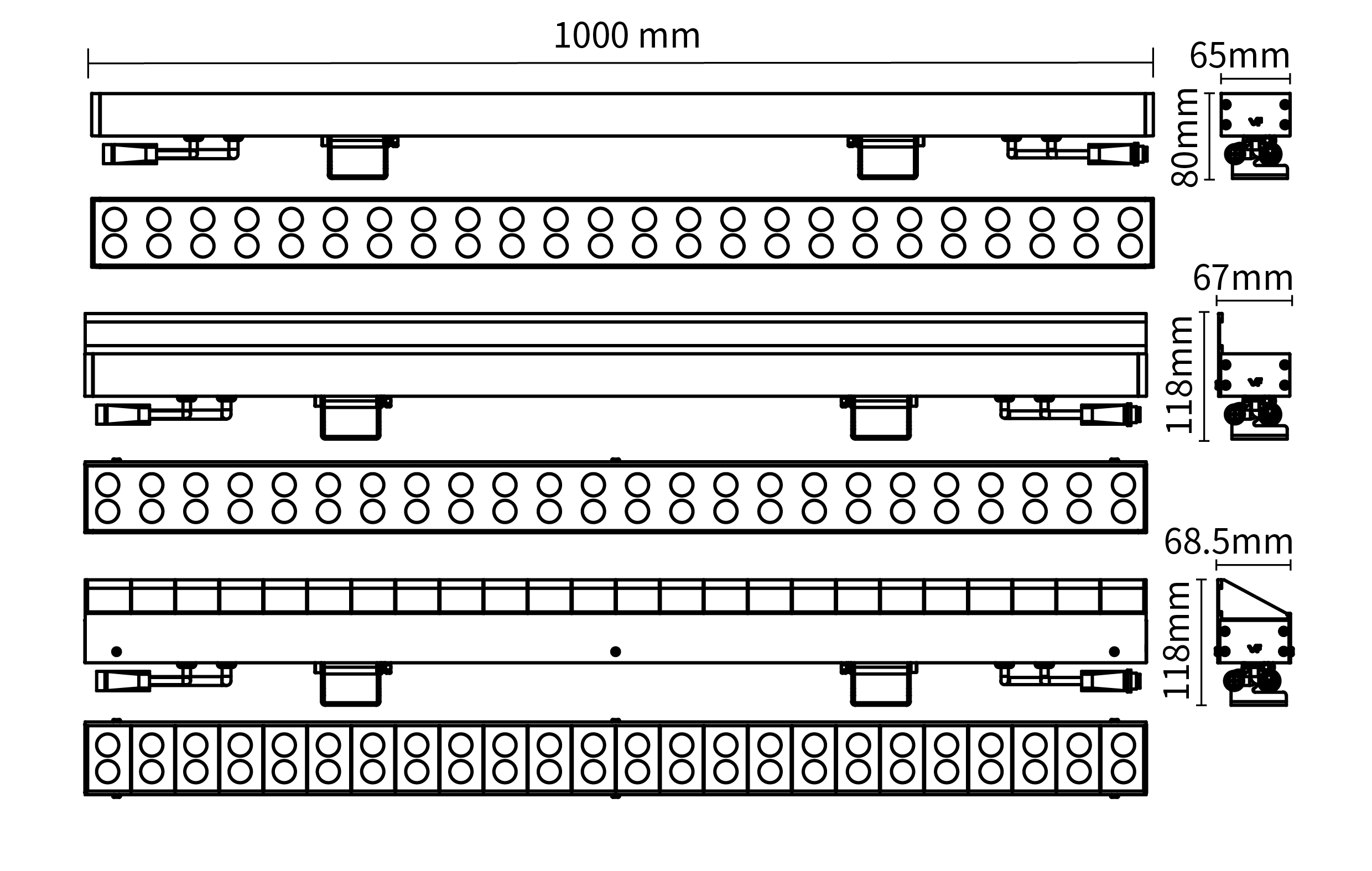

线条图:

产品特征:

可选配件:

反射器颜色:

外框颜色:

型号选择:

功率

功率
64W
72W
80W

光束角

光束角
12X25°
15X55°
20X30°
30°
60°

显示指数

显示指数
>80

色温

色温
2700K
3000K
4000K

Control

Control
ON/OFF/DALI/DMX512

调光方式

调光方式
1-Non Dim
4-DALI调光
5-DMX512

边框颜色

边框颜色
03-灰色

反射器颜色

反射器颜色
无

防护等级

防护等级
66-IP66

配件

配件
E-侧挡板
C-格栅

型号
整灯光通量
功率
光束角
显示指数
色温
Control
规格书
DWG
IES
安装手册
收藏

型号: BL00104-6412258027; BL00104-6412258030; BL00104-6412258040; BL00104-6420308027; BL00104-6420308030; BL00104-6420308040; BL00104-6415558027; BL00104-6415558030; BL00104-6415558040; BL00104-64308027; BL00104-64308030; BL00104-64308040; BL00104-64608027; BL00104-64608030; BL00104-64608040; BL00104-7212258027; BL00104-7212258030; BL00104-7212258040; BL00104-7220308027; BL00104-7220308030; BL00104-7220308040; BL00104-7215558027; BL00104-7215558030; BL00104-7215558040; BL00104-72308027; BL00104-72308030; BL00104-72308040; BL00104-72608027; BL00104-72608030; BL00104-72608040; BL00104-8012258027; BL00104-8012258030; BL00104-8012258040; BL00104-8020308027; BL00104-8020308030; BL00104-8020308040; BL00104-8015558027; BL00104-8015558030; BL00104-8015558040; BL00104-80308027; BL00104-80308030; BL00104-80308040; BL00104-80608027; BL00104-80608030; BL00104-80608040

整灯光通量: 6350LM; 6159LM; 6684LM; 6644LM; 6445LM; 6993LM; 5940LM; 5762LM; 6252LM; 5961LM; 5782LM; 6374LM; 6175LM; 5989LM; 6501LM; 6801LM; 6597LM; 7158LM; 7052LM; 6840LM; 7423LM; 6624LM; 6425LM; 6972LM; 6556LM; 6359LM; 6901LM; 6782LM; 6578LM; 7139LM; 7492LM; 7206LM; 7820LM; 7240LM; 7023LM; 7621LM; 6647LM; 6448LM; 6997LM; 6865LM; 6659LM; 7226LM; 6712LM; 6511LM; 7065LM

功率: 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W

光束角: 12X25°; 12X25°; 12X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°; 12X25°; 12X25°; 12X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°; 12X25°; 12X25°; 12X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°

显示指数: >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80

色温: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512

规格书

DWG

IES

安装手册

收藏
